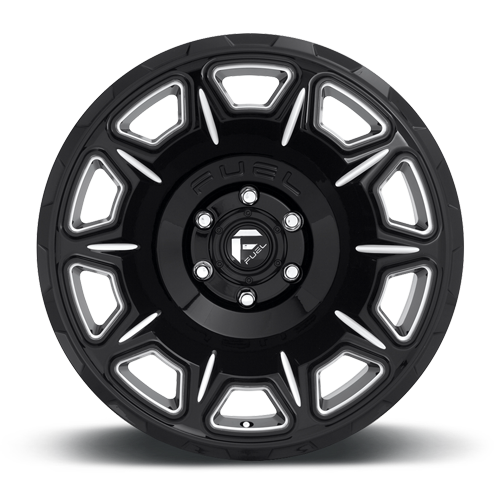

Wheel Collection

Details

17x9, 20x9, 20x10

Technical Specs

Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
17X9 5x127 D68817907545 NBL-Gloss BLK MIL 71.50 -12 4.500 1003-44B 2500 41 CONICAL 0
17X9 6x139.7 D68817908445 NBL-Gloss BLK MIL 106.10 -12 4.500 1003-46B HR78.1 2500 41 CONICAL 0
17X9 6x135 D68817908945 NBL-Gloss BLK MIL 87.10 -12 4.500 1003-70B 2500 41 CONICAL 0
Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
20X9 5x127 D68820907550 NBL-Gloss BLK MIL 71.50 1 5 1003-44B 2500 48 CONICAL 0
20X9 6x139.7 D68820908450 NBL-Gloss BLK MIL 106.10 1 5 1003-46B HR78.1 2500 48 CONICAL 0
20X9 6x135 D68820908950 NBL-Gloss BLK MIL 87.10 1 5 1003-70B 2500 48 CONICAL 0
20X10 8x170 D68820001747 NBL-Gloss BLK MIL 125.10 -18 4.750 1003-49B 3700 55 CONICAL 0
20X10 8x180 D68820001847 NBL-Gloss BLK MIL 124.30 -18 4.750 1003-49B 3700 55 CONICAL 0
20X10 5x127 D68820007547 NBL-Gloss BLK MIL 71.50 -18 4.750 1003-44B 2500 49 CONICAL 0
20X10 8x165.1 D68820008247 NBL-Gloss BLK MIL 125.20 -18 4.750 1003-50B 3700 55 CONICAL 0
20X10 6x139.7 D68820008447 NBL-Gloss BLK MIL 106.10 -18 4.750 1003-46GB HR78.1 2500 49 CONICAL 0
20X10 6x135 D68820008947 NBL-Gloss BLK MIL 87.10 -18 4.750 1003-48GB 2500 49 CONICAL 0
