Wheel Collection

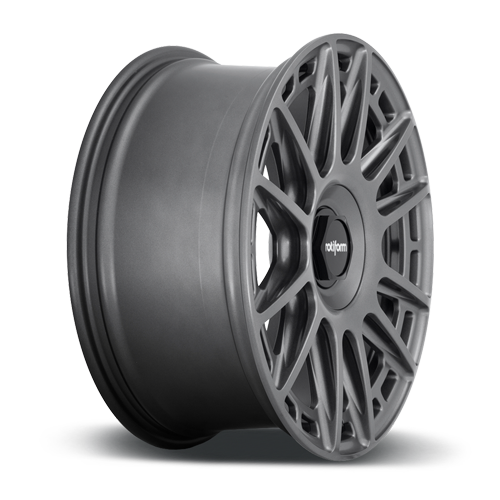

Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application-specific details.

Details

Refined and redesigned in multiple widths, diameters, and exclusive finishes. Innovative new engineering and casting methods yield stronger, lighter wheels while retaining the signature Rotiform look.

18x8.5, 19x8.5, 20x9, 20x10.5

Technical Specs

Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
18X8.50 5x108 5x114.3 R158188502+35 MATTE ANTHRACITE 72.60 35 6.100 36390-02MV 1600 27 CONICAL 0
18X8.50 5x108 5x114.3 R158188502+45 MATTE ANTHRACITE 72.60 45 6.500 36390-02MV 1600 27 CONICAL 0
18X8.50 5x100.00 5x114.30 R158188503+35 MATTE ANTHRACITE 70.10 35 6.100 36390-02MV 1600 27 CONICAL 0
18X8.50 5x100.00 5x112.00 R158188514+35 MATTE ANTHRACITE 66.60 35 6.100 36390-02MV 1600 27 CONICAL 0
18X8.50 5x100 5x112 R158188514+45 MATTE ANTHRACITE 66.50 45 6.500 36390-02MV 1600 27 CONICAL 0
18X8.50 5x112 5x120 R158188525+35 MATTE ANTHRACITE 72.50 35 6.100 36390-02MV 1600 27 CONICAL 0
18X8.50 5x112 5x120 R158188525+45 MATTE ANTHRACITE 72.50 45 6.500 36390-02MV 1600 27 CONICAL 0
18X8.50 5x112.00 R158188543+45 MATTE ANTHRACITE 66.56 45 6.500 36390-02MV 1600 27 CONICAL 0
18X8.50 5x112.00 R1581885F3+35 MATTE ANTHRACITE 66.60 35 0 1600 0 CONICAL
18X8.50 5x112.00 R1581885F8+45 MATTE ANTHRACITE 66.50 45 0 1600 29 CONICAL
18X8.50 5x108 5x114.3 R159188502+35 MATTE BLACK 72.60 35 6.100 36390-02MB 1600 27 CONICAL 0
18X8.50 5x108 5x114.3 R159188502+45 MATTE BLACK 72.60 45 6.500 36390-02MB 1600 27 CONICAL 0
18X8.50 5x100.00 5x114.30 R159188503+35 MATTE BLACK 70.10 35 6.100 36390-02MB 1600 27 CONICAL 0
18X8.50 5x100 5x112 R159188514+35 MATTE BLACK 66.50 35 6.100 36390-02MB 1600 27 CONICAL 0
18X8.50 5x100 5x112 R159188514+45 MATTE BLACK 66.50 45 6.500 36390-02MB 1600 27 CONICAL 0
18X8.50 5x112 5x120 R159188525+35 MATTE BLACK 72.50 35 6.100 36390-02MB 1600 27 CONICAL 0
18X8.50 5x112 5x120 R159188525+45 MATTE BLACK 72.50 45 6.500 36390-02MB 1600 27 CONICAL 0
18X8.50 5x112.00 R159188543+45 MATTE BLACK 66.56 45 6.500 36390-02MB 1600 27 CONICAL 0
18X8.50 5x112.00 R1591885F8+45 MATTE BLACK 66.50 45 0 1600 29 CONICAL
18X8.50 5x112.00 R1591885F8+45 MATTE BLACK 66.50 45 6.520 36390-02MB 1600 29 CONICAL 0
Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
19X8.50 5x108 5x114.3 R158198502+35 MATTE ANTHRACITE 72.60 35 6.100 36390-02MV 1600 32 CONICAL 0
19X8.50 5x108 5x114.3 R158198502+45 MATTE ANTHRACITE 72.60 45 6.500 36390-02MV 1600 32 CONICAL 0
19X8.50 5x100 5x112 R158198514+35 MATTE ANTHRACITE 66.50 35 6.100 36390-02MV 1600 32 BALL 0
19X8.50 5x100 5x112 R158198514+45 MATTE ANTHRACITE 66.50 45 6.500 36390-02MV 1600 32 BALL 0
19X8.50 5x112 5x120 R158198525+35 MATTE ANTHRACITE 72.50 35 6.100 36390-02MV 1600 32 BALL 0
19X8.50 5x112.00 5x120.00 R158198525+45 MATTE ANTHRACITE 72.56 45 6.500 36390-02MV 1600 29 BALL 0
19X8.50 5x110 5x115 R158198537+45 MATTE ANTHRACITE 72.60 45 6.500 36390-02MV 1600 32 CONICAL 0
19X8.50 5x112.00 R158198543+45 MATTE ANTHRACITE 66.56 45 6.500 36390-02MV 1600 32 BALL 0
19X8.50 5x114.30 5x120.00 R158198552+35 MATTE ANTHRACITE 72.56 35 6.100 36390-02MV 1600 32 CONICAL 0
19X8.50 5x114.3 5x120 R158198552+45 MATTE ANTHRACITE 72.60 45 6.500 36390-02MV 1600 32 CONICAL 0
19X8.50 5x112.00 R1581985F3+45 MATTE ANTHRACITE 66.60 45 0 1600 0 CONICAL
19X8.50 5x112.00 5x120.00 R1581985F4+45 MATTE ANTHRACITE 72.50 45 0 1600 30 CONICAL
19X8.50 5x108.00 5x112.00 R1581985F5+45 MATTE ANTHRACITE 66.50 45 0 1600 30 CONICAL
19X8.50 5x112.00 R1581985F8+45 MATTE ANTHRACITE 72.70 45 0 1600 30 CONICAL
19X8.50 5x108 5x114.3 R159198502+35 MATTE BLACK 72.60 35 6.100 36390-02MB 1600 32 CONICAL 0
19X8.50 5x108 5x114.3 R159198502+45 MATTE BLACK 72.60 45 6.500 36390-02MB 1600 32 CONICAL 0
19X8.50 5x100 5x112 R159198514+35 MATTE BLACK 66.50 35 6.100 36390-02MB 1600 32 BALL 0
19X8.50 5x100 5x112 R159198514+45 MATTE BLACK 66.50 45 6.500 36390-02MB 1600 32 BALL 0
19X8.50 5x112 5x120 R159198525+35 MATTE BLACK 72.50 35 6.100 36390-02MB 1600 32 BALL 0
19X8.50 5x112.00 5x120.00 R159198525+45 MATTE BLACK 72.56 45 6.500 36390-02MB 1600 29 BALL 0
19X8.50 5x110 5x115 R159198537+45 MATTE BLACK 72.60 45 6.500 36390-02MB 1600 32 CONICAL 0
19X8.50 5x112.00 R159198543+45 MATTE BLACK 66.56 45 6.500 36390-02MB 1600 32 BALL 0
19X8.50 5x114.30 5x120.00 R159198552+35 MATTE BLACK 72.56 35 6.100 36390-02MB 1600 32 CONICAL 0
19X8.50 5x114.3 5x120 R159198552+45 MATTE BLACK 72.60 45 6.500 36390-02MB 1600 32 CONICAL 0
19X8.50 5x108.00 5x120.00 R1591985E8+45 MATTE BLACK 72.60 45 0 1600 29 CONICAL 0
19X8.50 5x112.00 5x120.00 R1591985F4+45 MATTE BLACK 72.50 45 0 1600 30 CONICAL
19X8.50 5x108.00 5x112.00 R1591985F5+45 MATTE BLACK 66.50 45 0 1600 30 CONICAL
19X8.50 5x112.00 R1591985F8+45 MATTE BLACK 72.70 45 0 1600 30 CONICAL
Size BP BP 2 Part Number Finish Bore Offset BSM (in) Cap Num Rating (lb) Weight (lb) Lug Type LipSize (in)
20X9 5x108.00 5x114.30 R158209002+38 MATTE ANTHRACITE 72.56 38 6.450 36390-02MV 1800 33 CONICAL 0
20X9 5x112.00 5x120.00 R158209025+25 MATTE ANTHRACITE 72.56 25 5.940 36390-02MV 1800 33 CONICAL 0
20X9 5x112.00 5x120.00 R158209025+38 MATTE ANTHRACITE 72.56 38 6.450 36390-02MV 1800 33 CONICAL 0
20X9 5x115 R158209090+25 MATTE ANTHRACITE 71.60 25 5.940 36390-02MV 1800 33 CONICAL 0
20X9 5x112.00 5x120.00 R1582090F4+25 MATTE ANTHRACITE 72.50 25 0 1800 36 CONICAL
20X9 5x112.00 5x120.00 R1582090F4+25 MATTE ANTHRACITE 72.50 25 5.980 36390-02MV 1800 36 CONICAL 0
20X9 5x112.00 5x120.00 R1582090F4+38 MATTE ANTHRACITE 72.50 38 0 1800 36 CONICAL
20X9 5x112.00 5x120.00 R1582090F4+38 MATTE ANTHRACITE 72.50 38 6.500 36390-02MV 1800 36 CONICAL 0
20X9 5x108.00 5x114.30 R159209002+38 MATTE BLACK 72.56 38 6.450 36390-02MB 1800 33 CONICAL 0
20X9 5x112.00 5x120.00 R159209025+25 MATTE BLACK 72.56 25 5.940 36390-02MB 1800 33 CONICAL 0
20X9 5x112.00 5x120.00 R159209025+38 MATTE BLACK 72.56 38 6.450 36390-02MB 1800 33 CONICAL 0
20X9 5x115 R159209090+25 MATTE BLACK 71.60 25 5.940 36390-02MB 1800 33 CONICAL 0
20X9 5x112.00 5x120.00 R1592090F4+25 MATTE BLACK 72.50 25 0 1800 36 CONICAL
20X9 5x112.00 5x120.00 R1592090F4+25 MATTE BLACK 72.50 25 5.980 36390-02MB 1800 36 CONICAL 0
20X9 5x112.00 5x120.00 R1592090F4+38 MATTE BLACK 72.50 38 0 1800 36 CONICAL
20X10.50 5x112.00 5x120.00 R158200525+30 MATTE ANTHRACITE 72.56 30 6.900 36390-02MV 1800 39 BALL 0
20X10.50 5x112.00 5x120.00 R158200525+40 MATTE ANTHRACITE 72.56 40 7.300 36390-02MV 1800 39 BALL 0
20X10.50 5x108 R158200531+25 MATTE ANTHRACITE 72.60 25 6.700 36390-02MV 1800 37 CONICAL 0
20X10.50 5x108 R158200531+40 MATTE ANTHRACITE 72.60 40 7.300 36390-02MV 1800 37 CONICAL 0
20X10.50 5x114.3 R158200565+30 MATTE ANTHRACITE 72.60 30 6.900 36390-02MV 1800 37 CONICAL 0
20X10.50 5x115 R158200590+20 MATTE ANTHRACITE 71.60 20 6.500 36390-02MV 1800 37 CONICAL 0
20X10.50 5x112.00 5x120.00 R1582005F4+30 MATTE ANTHRACITE 72.50 30 0 1800 40 CONICAL
20X10.50 5x112.00 5x120.00 R1582005F4+40 MATTE ANTHRACITE 72.50 40 0 1800 40 CONICAL
20X10.50 5x112.00 5x120.00 R159200525+30 MATTE BLACK 72.56 30 6.900 36390-02MB 1800 39 BALL 0
20X10.50 5x112.00 5x120.00 R159200525+40 MATTE BLACK 72.56 40 7.300 36390-02MB 1800 39 BALL 0
20X10.50 5x108 R159200531+25 MATTE BLACK 72.60 25 6.700 36390-02MB 1800 37 CONICAL 0
20X10.50 5x108 R159200531+40 MATTE BLACK 72.60 40 7.300 36390-02MB 1800 37 CONICAL 0
20X10.50 5x114.3 R159200565+30 MATTE BLACK 72.60 30 6.900 36390-02MB 1800 37 CONICAL 0
20X10.50 5x115 R159200590+20 MATTE BLACK 71.60 20 6.500 36390-02MB 1800 37 CONICAL 0
20X10.50 5x112.00 5x120.00 R1592005F4+30 MATTE BLACK 72.50 30 0 1800 40 CONICAL
20X10.50 5x112.00 5x120.00 R1592005F4+40 MATTE BLACK 72.50 40 0 1800 40 CONICAL
