Wheel Collection

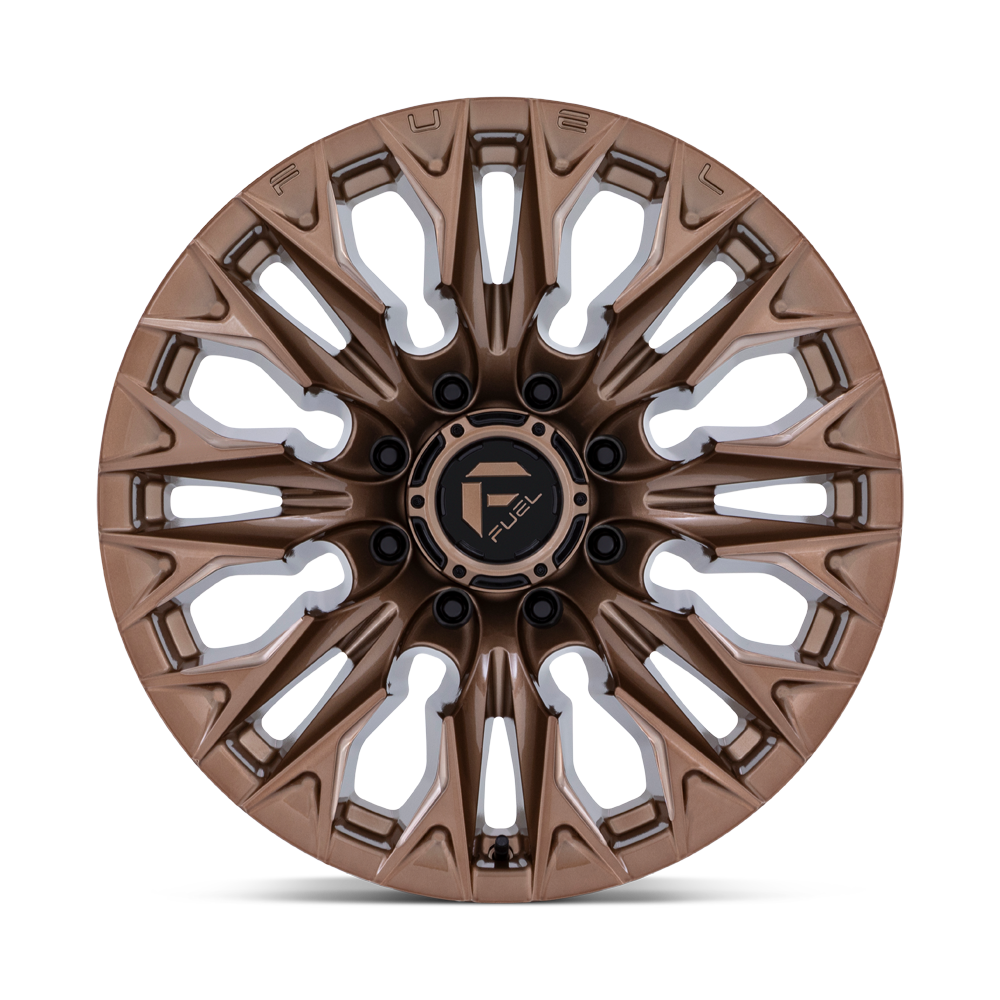

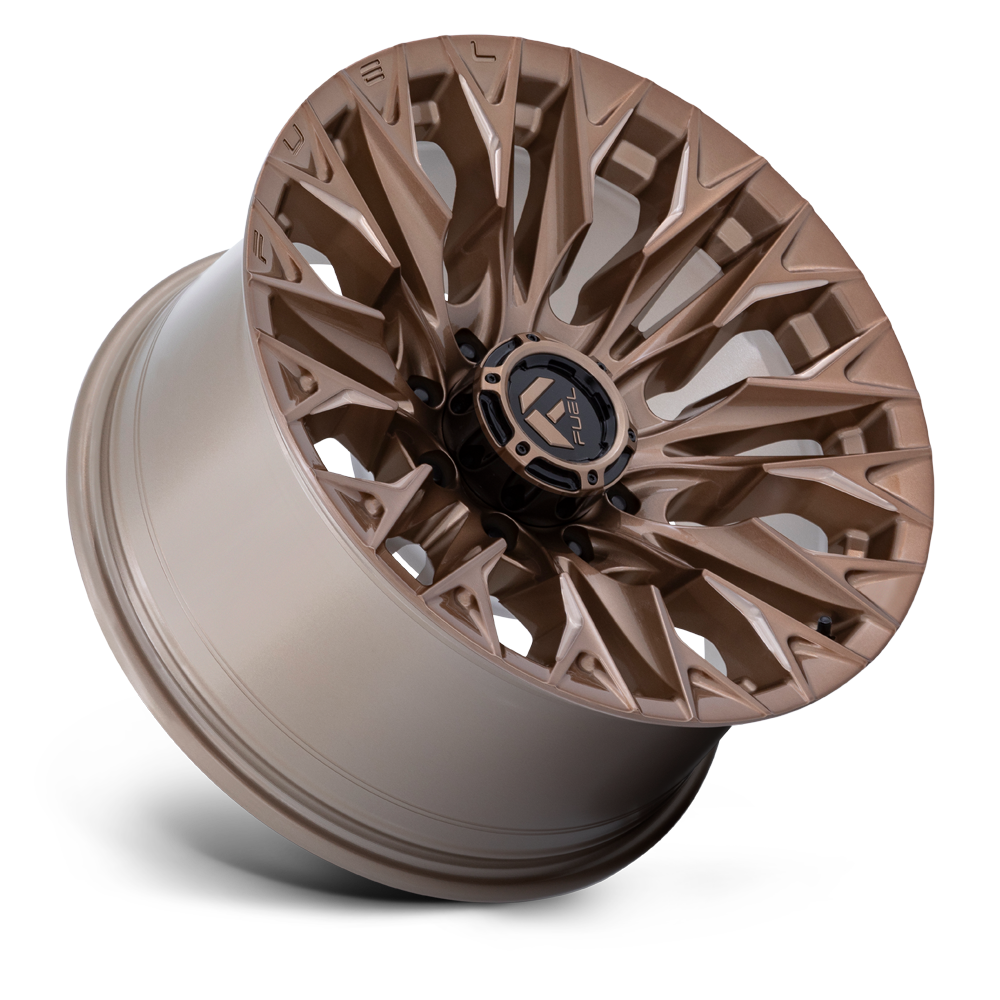

Product image shown not representative of all configurations. Vehicle specific fitment will change offset, dish and center profile. Please consult your salesperson for application specific details.
Fuel 1 Piece
Flame 8 - D805
Technical Specs
| Size | BP | BP 2 | Part Number | Finish | Bore | Offset | BSM (in) | Cap Num | Rating (lb) | Weight (lb) | Lug Type | LipSize (in) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 20X9 | 8X170 | D80520901750 | PLATINUM BRONZE | 125.1 | 1 | 5.04 | 1005-49TPBRZ | 3700 | 47 | Conical | 0 | |
| 20X9 | 8X170 | D80520901757 | PLATINUM BRONZE | 125.1 | 20 | 5.79 | 1005-49TPBRZ | 3700 | 48 | Conical | 0 | |
| 20X9 | 8X180 | D80520901850 | PLATINUM BRONZE | 124.2 | 1 | 5.04 | 1005-49PBRZ | 3700 | 47 | Conical | 0 | |
| 20X9 | 8X180 | D80520901857 | PLATINUM BRONZE | 124.2 | 20 | 5.79 | 1005-49PBRZ | 3700 | 48 | Conical | 0 | |
| 20X9 | 8X165.1 | D80520908250 | PLATINUM BRONZE | 125.1 | 1 | 5.04 | 1005-50SPBRZ | 3700 | 47 | Conical | 0 | |
| 20X9 | 8X165.1 | D80520908257 | PLATINUM BRONZE | 125.1 | 20 | 5.79 | 1005-50SPBRZ | 3700 | 48 | Conical | 0 | |
| 20X10 | 8X170 | D80520001747 | PLATINUM BRONZE | 125.1 | -18 | 4.79 | 1005-49TPBRZ | 3700 | 50 | Conical | 0 | |
| 20X10 | 8X180 | D80520001847 | PLATINUM BRONZE | 124.2 | -18 | 4.79 | 1005-49PBRZ | 3700 | 50 | Conical | 0 | |
| 20X10 | 8x165.1 | D80520008247 | PLATINUM BRONZE | 125.1 | -18 | 0 | 3700 | 55 |
